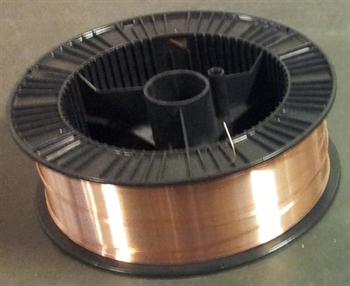

Three-phase compact MIG MAG welding machine on wheels. - Has a 4 roller wire feeder. - Its suitable to weld steel, stainless steel and aluminium. - Possibility to adjust the welding parameters through 14 adjustment steps. - Aluminium wire feeder that enables the adjustment of the pressure applied to the wire for having constant feeding and for decreasing wear of the feeding device. - Possibility to adjust the spot welding time. - Highly stable thanks to large-diameter rear wheels. Comes with a 4m M25 torch, a 4m earth cable, an Argon/CO2 GCE release valve, 15kg SG2 welding wire Ø300mm Ø1,0mm and a startersset of welding consumables
Voltage | 3x230/400 50-60 Hz |
Power | 30% 11,5 kVA - 60% 8,3 kVA - 100% 6,5 kVA |
MIN-MAX welding current | 25 - 300A |
Duty cycle | 30% 250A - 60% 180A - 100% 140A |
Control | 2x7 |
Ø solid wire | Ø mm 0,6/0,8/1,0/1,2 |
Maximum wire spool | Ø 300 mm / 15 kg |
Protection | IP21 |
Construction norms | EN 60974 – 1 / EN 60974 - 10 |
Dimensions | 506x897x872h mm |
Weight | 70 kg |
